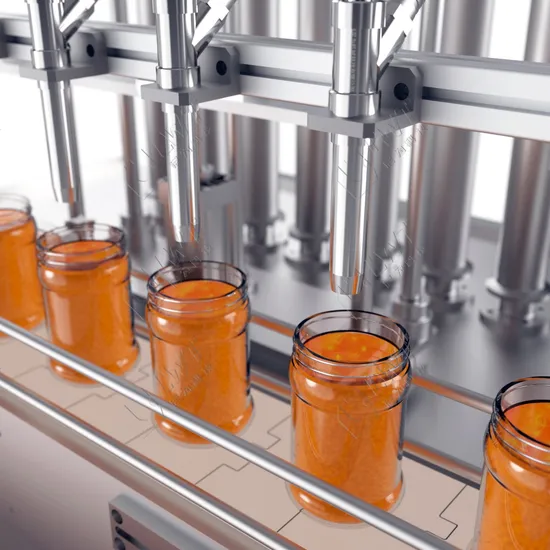

Chocolate Sauce Salad Dressing Honey Mayonnaise Chili Sauce Juice Filling Machine

• Overview
• Product Description
• Company Profile

Overview

Basic Info.

Model NO.	Filling Machine
Type	Count Filling Machine
Automatic Grade	Fully Automatic
Material Type	Paste
Filling Valve Head	4-12
Feed Cylinder Structure	Multi-Room Feeding
Dosing Device	Positive Displacement
Filling Principle	Precise Control of Servo Motor
Packaging Container Lifting Structure	Pneumatic Lifting
Structure	Linear
Packaging	Plastic, Tin, Glass
Packaging Material	Plastic, Tin, Glass
Product Name	Paste/Sauce/Jam Filling Machine
Material	Stainless Steel
Filling Volume	200-1000ml
Weight	500kg
Dimension(L*W*H)	250cm*102cm*225cm
Power Supply	3pH 380V 50/60Hz
Function	Automatic Filler
Feature	High Accouracy Filling Machine
Usage	Plastic, Tin, Glass
Brand Name	Lw
Application	All Kinds of Sauce
PLC	Siemens
Transport Package	Wooden Cases
Specification	220*102*225
Trademark	LW
Origin	Shanghai
HS Code	8422301090
Production Capacity	100 Piece Per Month

Product Description

Filling Capping Packing MachineChocolate Sauce,Salad Dressing,Honey,Mayonnaise,Chili Sauce,Mushroom Sauce, Juice Drink Tomato Ketchup Canned Filling Machine

Filling Machine is widely used as sauces,foods etc,can fill hot sauce,tomato ketchup,honey,jam,mushroom sauce,mustard sauce, pepper sauce,chili sauce,peanut butter,salad dressing,pulp-containing beverages and other liquid. Filling.

1. Welcome to my website!

2. Are you looking for Sauce/Paste Filling Machine?

3. Please Consult Us Immediately and we will help you at the first time!

Technical Parameters: Accessories list:

FAQQ1:Are you manufacturer or trading company?We are manufacture verified by ****** and we have our own design team.Q2:Where are you located? Is it convenient to visit you?We are located in Shanghai. Traffic is very convenient.Q3:How can you guarantee quality?1.We have completed working system and procedures and we follow them very strictly.2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.3.The electrical pneumatic components are from the world famous companies, such as Germany's Siemens, Japanese Panasonic etc.4.We will do strict test running after the machine is finished.5.Our machines are certified by CE,SGS,ISO.Q4:Can you design the machine according to our requirements?Yes. We not only can customize the machine according to your technical drawing, but also can design new machine according to your requirements.Q5:Can you offer overseas technical support?Yes. We can send engineer to your company to set the machine and train your worker if needed.Q6: what we should know when you purchase the filling machine? You should tell us what is your product you wanna fill? what is your filling type?filling the bottle,canned and so on.what is your speed requirement or how many quantity per minute you wanna fill?
Product Description Note:

Model	LW--4A	LW--6A	LW--8A	LW--10A	LW--12A
Filling Volume	500ml can customize	500ml can customize	500ml can customize	1000-2500ml can customize	2500-5000ml can customize
Air Consumption	120L/Min	140L/Min	160L/Min	280L/Min	300L/Min
Total Power	AC380V, 50/60HZ 1.4KW	AC380V, 50/60HZ 1.7KW	AC380V, 50/60HZ 2.1KW	AC380V, 50/60HZ 2.9KW	AC380V, 50/60HZ 3KW
Capacity	0--1920 bottles/h 500ml bottle as an example	1800-2520 bottles/h 500ml bottle as an example	2400-3360 bottles/h 500ml bottle as an example	3000-4200 bottles/h 500ml bottle as an example	3600-5040 bottles/h 500ml bottle as an example
Filling Heads	4	6	8	10	12
Material	SUS304	SUS304	SUS304	SUS304	SUS304

Accessories name	Brand name
PLC	Siemens German
pneumatic element	AirTac Taiwan
amphenol connector	Weidmuller German
Bearing	IGUS German
Photoelectricity	KEYENCE Japan it is waterproof
Piston	Taiwan, heat-resistant, oil proof

Features:

1. Vacuum Preventing Leaking System2. No Bottle or Lack of Bottle, No Filling System3. Photoelectric Sensor, Mechatronics Filling Adjustment System4. Photoelectric Sensor, Material Level Control Feeding System5. Stainless Steel Frame,Plexiglass as Security Cover6. Control System: PLC/Electronic-Pneumatic Controlled7. Operation Panel: "Intelligent" Colorful Touch Screen8. Filling Accuracy:+-5%9. Capacity Adjustment:All cylinders adjusted automatically combine single cylinder adjusted individually.10.Container transport:Stainless steel frame and engineering plastic plate chain variable speed conveyor, with photoelectric sensor

Company Profile Quick Quotation, Please Consult Us
