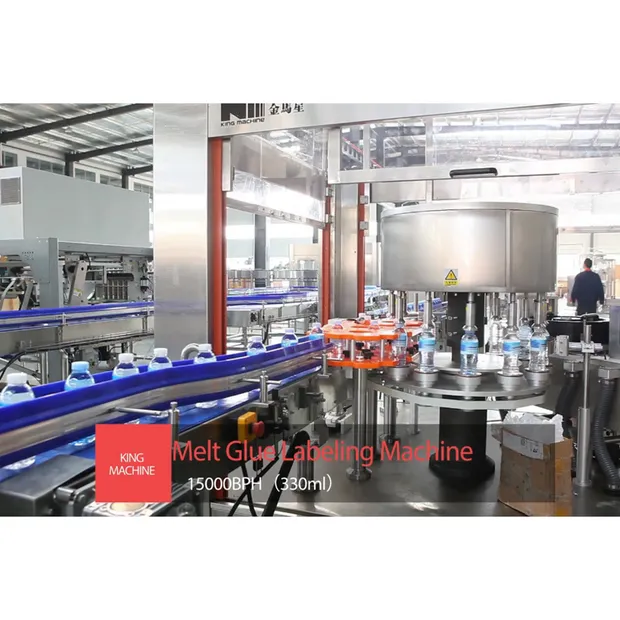

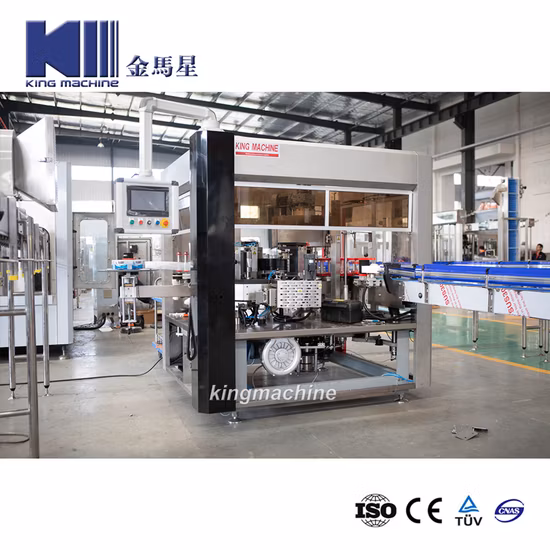

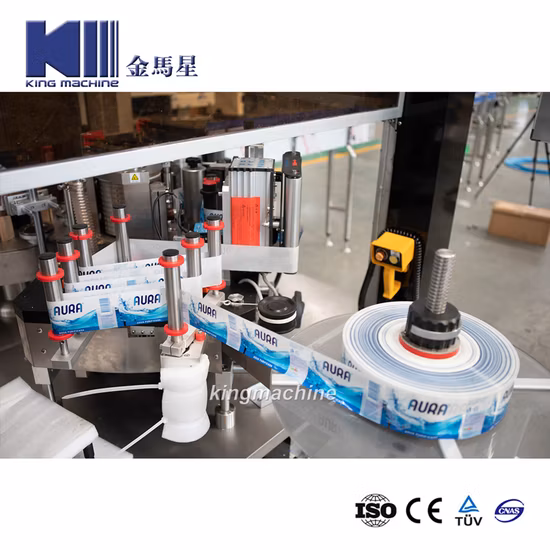

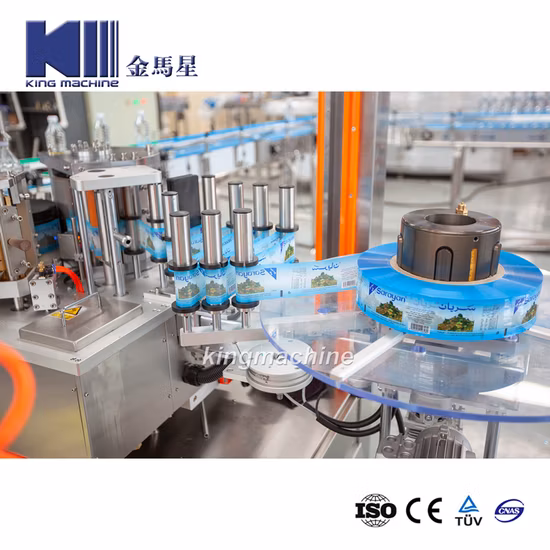

Fully Automatic Hot Melt Glue OPP Pet Flat Round Plastic Bottle Square Bottle Carbonated Drink Juice Beverage Drinking Water Bottle Labeling Packing Machine

Overview

Basic Info.

Model NO.	KM
Classification	Automatic Vertical Round Bottle Labeling Machine
Packaging Material	Plastic
Packaging	Bottles
Delivery Time	20days
Voltage	According Customers′ Request
Certificate	CE, SGS, ISO
After-Sales Service Provided	Engineers Available to Service Machinery Overseas
Warranty Time	12monthes
Capacity	100bpm-400bpm
Materail	Stainless Steel
Suitable	Bottles and Other Products with PVC Heat Shrink La
Factory	King Machine
Name	PVC Shrink Sleeve Labeling Machine for Bottles
Transport Package	Wooden Cases for Sleeve Labeling Machine
Specification	CE Certificate/ ISO9000: 9001/ SGS
Trademark	KING MACHINE
Origin	China Zhangjiagang
HS Code	8422309090
Production Capacity	1000PCS/Year

Product Description

2.1 Main structure:
A: Main machine(key part)
It adopts Japan Keyence ultra speed motion control system
Japan Keyence 10" touch screen
Japan Yaskawa servo motor system
Germany SICK High speed and high resolution color sensor
Japan NEMICON coder
German piltz safety system
German Lemer E + L corrector
2.2 Mechanical part:
Conveying structure:It uses conveyor chain driving force, this labeling machine has no conveying force frequency converter
Main shaft frame:Two single acting cylinders and columns are used to form a triangle stable state
Main shaft lifting structure:Use SEW motor
Driving structure: German SEW 3KW motor
frequency converter
Whole machine gear driving system
Bottles self-rotate synchronous wheel drive system
Bottle pressing system with cam guide
Pressing head driving system
Small machine up and down adjustment system
Why chooose hot melt glue labeling machine ?
It's never been more important to stand out from the crowd in today's competitive beverage market. As your products' main communicator to consumers, labels are more than an identifier - they allow you to differentiate your products and give consumers the information they need and increasingly expect.
When it comes to labelling a variety of beverage types and bottle formats, more than ever before, flexibility has become a valuable benefit to beverage producers. The top priorities today are faster product and format changeovers, simple operations and optimised processes that use the same line for different label types.
Easy to use and flexible, they also incorporate a range of technologies suitable for many types of containers and products: from beverages to cosmetics to detergents.

Specification	Automatic Self-adhesive Labeling Machine.
Speed	50~180 bottles/minutes according to the specification of bottle and label
Packaging Details	Label size (L: 20-150mm W: 10-250mm) Bottle Size (D: 10-150mm H: 30-350mm)
Power	500W 220V 1Ph 50-60Hz
Overall Size	1800*1000*1500 mm
Weight	420 Kg
Label Position	Single label / Front and back double sides / Front back neck three sides

Technical Parameter
Model	SPC-150B	SPC-250B
Capacity (on the base label length :500ml)	3000BPH-6000BPH	6000BPH-10000BPH
Label size	Diameter 50-110mm	Diameter 30-125mm
Bottle heights	heights 50-200mm
Bottle diameter	Diameter 40-120mm	Diameter 28-125mm
Label sleeve length	40-150mm	30-250mm
Thickness	> 0.035mm
Label material	PVC/ PET
Electrical power	2.5KW (380V 50HZ)
Overall diameter	2440*890*2200mm
Weight	Approximate 750KG	Approximate 950KG

Specification:( Automatic Cold Glue Labeling Machine. )
Range of output capacity	3000-12000 b/h
Label Width	50-130 mm
Capacity of Label Box	7000 pieces
Main Motor Power	3 KW
Air Pressure	0.35-0.5 Mpa
Air Flow	0.9 m3/min
Weight	2000 kg
Overall Dimension	<L*W*H> 1800 * 1400 * 2000 mm

Company Profile

King Machine Company indtroducton:

1. Installation, debugAfter equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.2. TrainingOur company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.3. Quality guaranteeWe promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.4. After salesAfter checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

FAQ

Q1: Do you have reference project?A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.Contact our sales people you can get video of our reference running machineQ2: Do you have agent and after-service stations?A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!Q3: Do you provide customized serviceA3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.Q4: What's your guarantee or the warranty of the quality if we buy your machines?A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.Q5: How long time for installation?A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.Please feel free to contact with me:Zhangjiagang King Machine Co.,LtdAdd: NO.22 East Seven Road Donglai Town, Zhangjiagang City, Jiangsu Province, China
